Clay Soil’s Effect on Pipes in Caboolture

Residents of Caboolture, Morayfield, Upper Caboolture, and the Moreton Bay region should be alert to wet patches, sinking areas, ongoing blockages, or cracks in their foundations, as these issues may signal that reactive clay soil is adversely affecting your underground pipes.

The foundations in Caboolture primarily consist of reactive clay, which exhibits significant volume changes, expanding when wet and contracting when dry—sometimes by 20% or more. This persistent fluctuation places immense pressure on underground pipes during wet periods, making them particularly vulnerable as the soil dries out. Older sewer systems made from clay and galvanised water pipes face heightened risks. Conducting a camera inspection can help detect damage early, and pipe relining often offers a practical solution without the need for garden excavation.

In Caboolture, underground pipes constantly contend with the surrounding soil.

This ongoing conflict can lead to significant pipe damage over time. By the time visible symptoms arise, the underlying issues may have been developing for a considerable duration.

What Are the Effects of Clay Soil Cycles on Pipe Integrity?

There are four essential phases in this process: wet swelling (compression), dry shrinking (loss of support), the cyclical stress of expansion and contraction, and the typical drought-to-flood transitions experienced in Southeast Queensland. Each of these cycles worsens existing cracks and misaligns pipe joints.

• The wet phase: Intense rainfall in Caboolture causes the clay to absorb moisture and expand. This expansion exerts crushing pressure on pipes from all sides, potentially causing joints to either compress together or separate. Rigid pipe materials are especially susceptible to cracking under such severe pressure.
• The dry phase: When rainfall subsides and the clay dries, it contracts and pulls away from the pipes. This creates voids and gaps, leading to sagging, misalignment at joints, and the formation of bellies where water and sediment can collect.
• The repetitive cycle: This process of expansion and contraction occurs multiple times throughout the year in Caboolture’s climate. Each cycle increases the stress on pipes and gradually exacerbates existing cracks.
• The drought-flood pattern: Southeast Queensland experiences alternating dry spells and intense wet seasons. Following prolonged dry conditions, the clay shrinks dramatically. When heavy rain arrives, the soil expands quickly, exerting sudden and extreme pressure on pipes that may be resting in loose, cracked ground.

Which Pipe Types Are Most Prone to Damage?

Older clay sewer pipes (from homes built before the 1970s), galvanised steel water mains (from properties constructed prior to 1985), and concrete stormwater pipes are particularly vulnerable. Modern PVC pipes generally perform better but can still face joint separation due to inadequate backfill. Copper pipes, although more flexible, may develop pinhole leaks at connection points due to repeated stress.

• Clay pipes: Clay sewer pipes, especially those from homes built before the 1970s in Caboolture, are among the first to fail due to their brittle construction and mortar joints, which make them prone to cracking.
• Galvanised steel pipes: These pipes, used for water supply in homes built before 1985, are already weakened by internal corrosion and can crack as the surrounding clay soil shifts.
• Concrete stormwater pipes: Although older stormwater systems can handle compression reasonably well, they often crack at the joints during ground movement, allowing roots to penetrate through these fractures.
• PVC pipes: Modern PVC pipes are more resistant to ground movement due to their flexibility. significant ground movement can still lead to joint separation, and poor backfill during installation can increase their vulnerability.
• Copper pipes: Used in newer homes for water supply, copper pipes are more flexible than galvanised steel but can still develop leaks at connection points due to repeated bending stress.

What Signs Indicate Potential Damage to Underground Pipes?

Stay alert for wet patches during dry spells, sinkholes or soft areas, slow drainage, foul odours in your yard, unusually lush grass patches, trees heavily rooting in one area, and cracks in your foundation slab. If you notice two or more of these indicators, schedule a camera inspection without delay.

• Wet spots in the garden during dry weather—this may indicate water leaking from a damaged pipe, saturating the surrounding soil.
• Sinkholes or soft spots—these occur when soil is washed into a broken pipe, creating an underground void.
• Slow drainage or recurring blockages—a cracked, misaligned, or sagging pipe can trap debris and roots at the damaged sections.
• Foul smells in your garden—a cracked sewer pipe may leak waste into the surrounding soil.

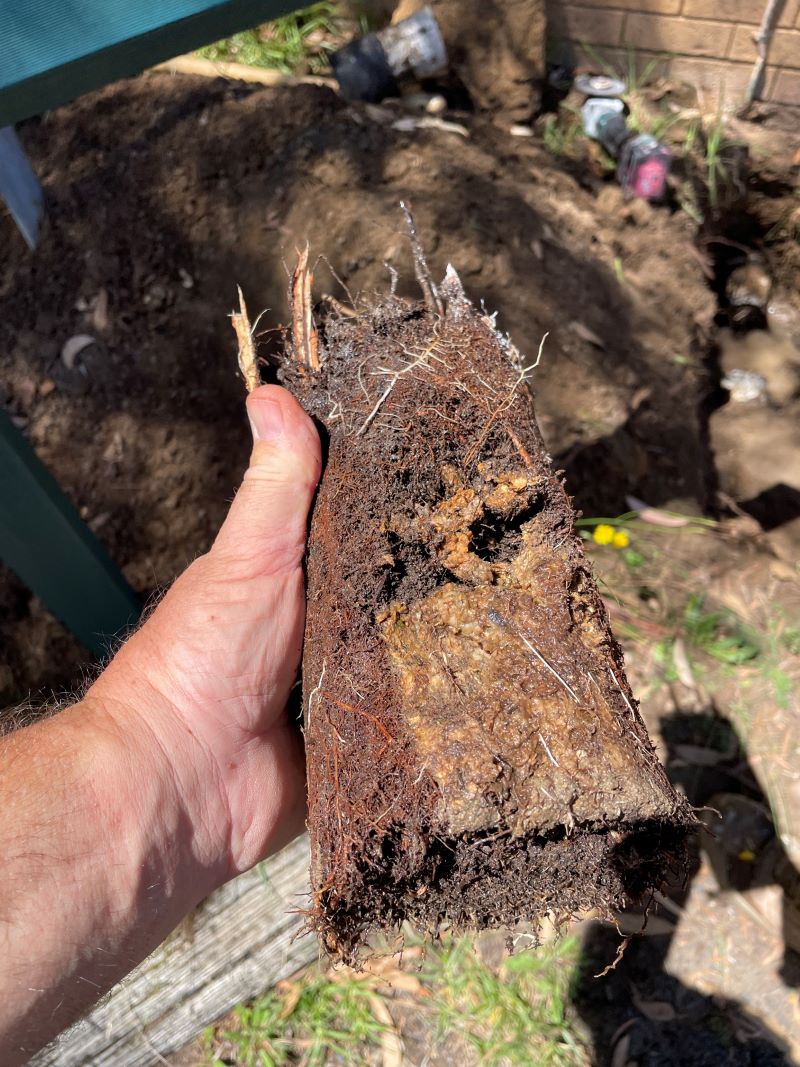

• Tree roots thriving in a specific area—trees can detect moisture and nutrients leaking from damaged pipes, leading to concentrated root growth.
• Cracks in your foundation or slab—movement in clay soil affecting your pipes can also impact your home’s structural integrity.

How Is Pipe Damage Detected?

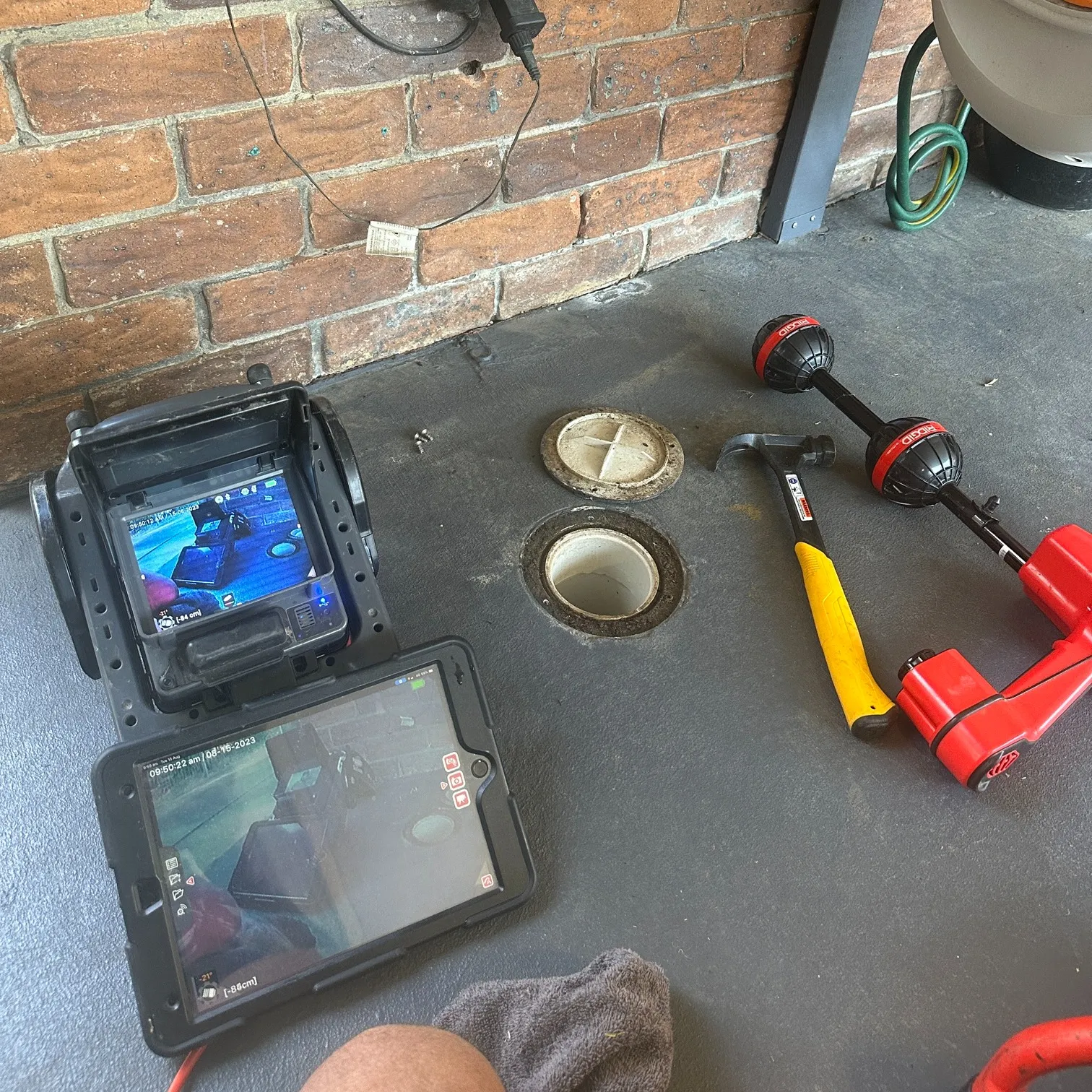

We utilise CCTV drain cameras to conduct real-time visual inspections of sewer and stormwater pipes, allowing us to identify cracks, root intrusions, displaced joints, bellies, and collapses. For water mains, we employ acoustic and thermal leak detection methods alongside a thorough property assessment to anticipate potential future damage.

• CCTV drain camera inspection: A camera traverses the pipe, providing a live visual of its condition. This allows us to uncover cracks, breaks, root intrusions, displaced joints, sediment build-up, and sections that have collapsed.
• Leak detection: To locate leaks in water supply pipes, we employ advanced acoustic and thermal detection tools, enabling us to pinpoint issues without the need for excavation.
• Ground assessment: We evaluate the entire landscape—soil conditions, tree placements, pipe materials, and property layout—to identify the causes of damage and predict where future issues may arise.

What Solutions Are Available for Addressing Pipe Damage?

Hydro jetting is employed to remove immediate blockages. For pipes that are cracked or invaded by roots, pipe relining is the most effective solution, eliminating the need for excavation. Installing French and spoon drains can help alleviate future pressure caused by ground movement. Full excavation is only necessary in cases of complete pipe failure.

• Hydro jetting: This technique clears roots, sediment, and debris from damaged pipes to restore proper flow and often serves as a preliminary step before conducting a camera inspection.
• Pipe relining: This solution is ideal for cracked and root-invaded pipes in clay soil. A flexible resin liner is inserted into the damaged pipe and cured in place, eliminating the need for excavation. This solution is designed to last over 50 years.
• French drains: These systems redirect groundwater away from pipe corridors, reducing the pressure caused by the wet-dry cycles.
• Spoon drains: These surface drains capture and redirect rainwater before it saturates the soil surrounding underground pipes.
• Excavation and replacement: This option is reserved for completely collapsed pipes where relining is not feasible. We replace the damaged section with new PVC pipes bedded on sand rather than clay to mitigate future issues caused by ground movement.

Why Is Prompt Action Essential to Prevent Collapse?

Damage to underground pipes in clay soil worsens progressively. The situation does not stabilise; it deteriorates over time. A minor crack today could escalate into complete pipe failure tomorrow. Roots that infiltrate gaps will continue to grow, ultimately blocking the pipe entirely.

The most cost-effective repairs are those undertaken early. A camera inspection reveals the precise conditions underground, enabling you to plan necessary repairs before an urgent situation manifests.

You can verify our QBCC licence on the QBCC public register before scheduling a booking, as we are a licensed plumbing contractor in Queensland.

Contact us at 1300 793 962 or reach out to arrange your underground pipe inspection.

Frequently Asked Questions Regarding Clay Soil and Pipe Damage

How Can I Minimise the Risk of Clay Soil Damaging My Pipes?

While complete prevention is not possible, you can reduce the risk of damage. Regularly watering the area around your home during dry spells can help mitigate the shrinkage cycle. Effective tree management can lessen root pressure on pipes. Implementing proper drainage systems also aids in reducing soil saturation. Regular monitoring of pipes in reactive clay soil is crucial—camera inspections can identify issues early.

What Are the Estimated Costs for Repairing Pipes Damaged by Clay Soil?

Repair costs vary based on the extent of the damage and the chosen method. Hydro jetting to clear a blockage starts at approximately $350. Pipe relining for a damaged section typically begins at $4,000, while full excavation and replacement of a collapsed pipe may exceed $8,000, influenced by factors such as depth, length, and access. We provide precise pricing after conducting a camera inspection.

Is Pipe Relining Comparable in Effectiveness to Installing a New Pipe?

In most instances, yes. A relined pipe features a smooth, jointless interior that actually offers better flow than the original pipe. The resin liner resists root intrusion and corrosion, boasting a lifespan of over 50 years. The primary advantage of relining over replacement is that it preserves your garden, driveway, and yard.

How Can I Determine If My Property Contains Reactive Clay Soil?

Caboolture, Morayfield, Upper Caboolture, and much of the Moreton Bay area are situated on reactive clay. Signs to look for include deep cracks in the soil during dry spells, sticky clay when wet, and uneven ground levels throughout the seasons. If your home was constructed with specialised footings (deeper and reinforced), it is likely that the builder recognised the reactive nature of the soil.

Who Should Consider This Article Irrelevant?

• If you are located outside the Moreton Bay region—different soil conditions require different solutions. Our services specifically cover Caboolture, Burpengary, Morayfield, Bribie Island, Narangba, and surrounding suburbs.
• If you intend to DIY the plumbing work—underground sanitary plumbing must be performed by a licensed plumber in Queensland.
• If you are seeking the cheapest quick fix without an inspection—we prioritise thorough assessments; we will not commence excavation without first conducting a camera inspection.
